MOSNIC-IRUDEXwww.mosnic-irudex.com
Paper filters IR

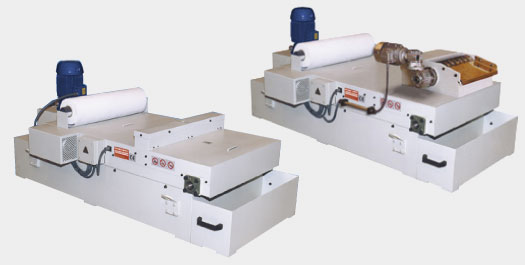

Paper filters with or without magnetic separator
Paper filters with magnetic separator for cleaning coolants with a high concentration of particles.
Characteristics
- Specifically for short particles generated during machining processes.
- Materials: Steel, aluminium, brass and cast iron.
- Filtration clarity: 30-100 microns.
- For coolants, emulsions and cutting oils.
- Paper filter mesh.
- *Magnetic separator for previous filtering.
- *Maximum filtration efficiency.
* With magnetic separator

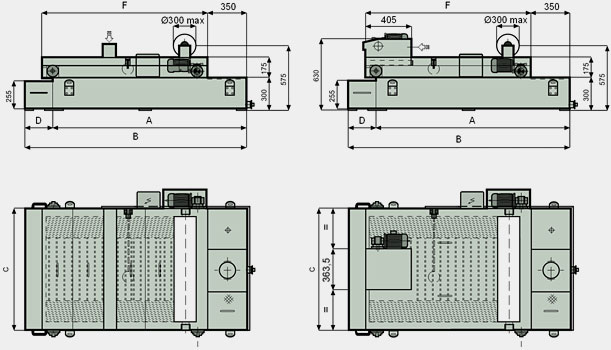

Types and dimensions
| MOD. | A | B | C | D | E | F | G | Filter surface | Flow-rate |
| IR-50 F | 1460 | 1160 | 580 | 250 | 594 | 1250 | 500 | 0,625 | 50 l/min |
| IR-100 F | 1610 | 1860 | 780 | 250 | 594 | 1400 | 700 | 0,98 | 100 l/min |
| IR-150 F | 1710 | 1960 | 1080 | 250 | 594 | 1500 | 700 | 1,5 | 150 l/min |
| IR-200 F | 2210 | 2460 | 1080 | 250 | 594 | 2000 | 1000 | 2 | 200 l/min |
| IR-250 F | 2710 | 2960 | 1080 | 250 | 594 | 2500 | 1000 | 2,5 | 250 l/min |
| IR-300 F | 3210 | 3460 | 1080 | 250 | 594 | 3000 | 1000 | 3 | 300 l/min |
| IR-350 F | 3710 | 3960 | 1080 | 250 | 594 | 3500 | 1000 | 3,5 | 350 l/min |
| IR-400 F | 4210 | 4460 | 1080 | 250 | 594 | 4000 | 1000 | 4 | 400 l/min |
| IR-450 F | 4710 | 4960 | 1080 | 250 | 594 | 4500 | 1000 | 4,5 | 450 l/min |
| IR-500 F | 5210 | 5460 | 1080 | 250 | 594 | 5000 | 1000 | 5 | 500 l/min |
