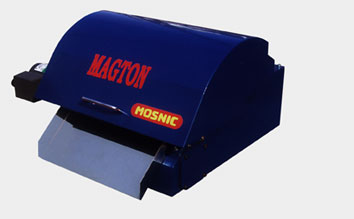

Magnet Separator MAGTON (MGT)

Equipped with very powerful magnets, it is very suitable for grinding and honing operations.

Removing the high content of particles contained in the cooling liquid increases its life.

The high quality of the liquid filtration increases the life of the abrasive wheel and also the quality of the final product..

Characteristics

Liquid is sent from the primary filtration equipment or from the grinding machine to the magnetic separator, when this liquid crosses the magnetic roller the particles contained in the liquid are trapped by it. A degree of filtration of up to 10 microns over 90 % can be obtained.

General specifications

• The magnets used are rare earth magnets, which have an attraction capability nearly three times greater than conventional ferrite magnets.
• The equipment also comes provided with a rubber squeegee roller whose purpose is to leave the sludge practically dry.
• There are three different models that cover various flows, from 40 l/min to 1500 l/min.
• They can be installed in an individual or multiple mode.

MAGTON (MGT)

*Standard Option:

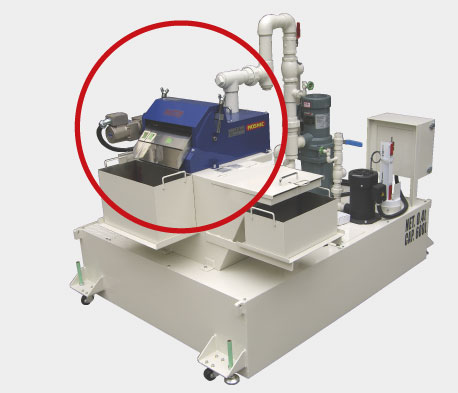

• Sedimentary tank of fine sludge and polishing powder, which is installed clean coolant outlet of magnetic separator filtration.
